Description

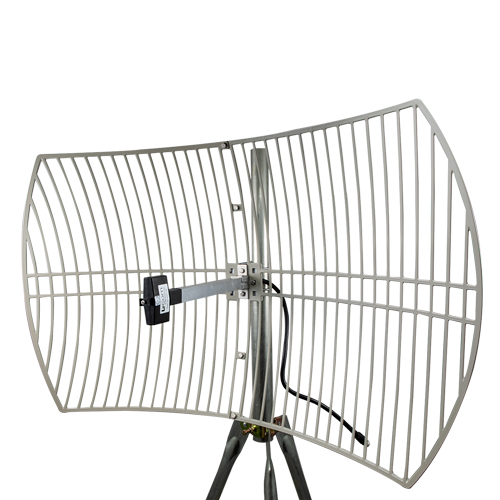

The L-com HG1922EG-1-NF is a high-performance light weight reflector grid antenna specifically designed for long-range directional point to point systems, point to multipoint and wireless bridges. L-com's HG1922EG-1-NF has 20 to 22 dBi gain. The open grid design provides minimal wind loading and is UV resistant powder coated for durability. The HG1922EG-1-NF operates from 1920 to 2170 MHz which is ideal for cellular backhaul.
The HG1922EG-1-NF from L-com has 13° Vertical and 8° Horizontal Beamwidth patterns with vertical or horizontal polarization and features Type N female connectors. The 1920-2170 MHz HG1922EG-1-NF is shipped as a 2-piece reflector grid which is simple to assemble and greatly reduces shipping costs.
The Type N female connectorized HG1922EG-1-NF antenna from L-com has mounting bracket and hardware included which makes this antenna very easy to install. This high-performance light weight reflector grid antenna just like our wide selection of superior quality RF parts, ship same day. Contact our knowledgeable and friendly technical support and sales staff for your answers on antennas or other L-com products.
Features
- All weather operation
- Easy to assemble
- UV stable powder coat finish
- Die-cast aluminum construction
Application
- 1920 to 2170 MHz GSM Band
- Point to Point (PtP) Systems & Point to Multi-point (PtMP) Systems
- Cellular Systems & Long-range Directional Applications
- Wireless Bridges, Backhaul Applications & Wireless Video Systems
