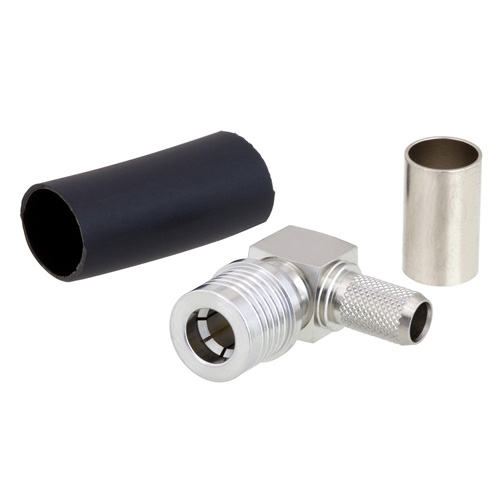

EZ-240-QM-RA-X QMA male right angle coaxial connector has an interface type of QMA male LMR-240, PE-C240, LMR-240-UF and a 50 Ohm impedance. Pasternack's QMA male connector uses crimp/non-solder contact as an attachment method. Our male QMA right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.
The Pasternack right angle QMA male coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. The Pasternack QMA coaxial connector has a brass body with tri-metal plating.
Pasternack RF connector has a maximum inner conductor and outer conductor resistance of 0 mOhms and 0 mOhms respectively. The radio frequency connector is made from brass material and has a contact life of 100 cycles or more. Our high-quality EZ-240-QM-RA-X features an 80 µ inches minimum body plating specification. The Pasternack EZ-240-QM-RA-X QMA connector operates at a temperature range of -40 to 125 deg C. Our male RF connector with coaxial termination has a 0.25 dB maximum insertion loss.
This Pasternack right angle male QMA connector will ship the same business day as purchased. Our QMA right angle male connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
