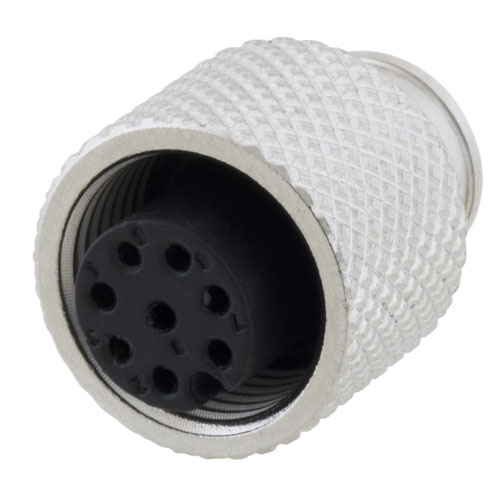

M12 8 Position A-code Mold Connector, Female, Shielded
Description
M12 mold connectors with solder cups are now available from L-com. These connectors are appropriate to direct solder to cable and can be over-molded or heat-shrinked. Available in male or female in 8 Position A-code, 4 Position D-Code and 8 Position X-code. The D and X-code connectors are rated for twisted pair or Ethernet applications while A-code is meant for straight wire use. All connectors are shielded and are IP67 or IP68 rated when properly terminated and mated.
Features
A-code connectors are IP67 when mated properly and appropriately molded or shrinked
Individually packaged
Suitable for up to 8 conductor, straight wire applications
A-code temp range: -25° to 85°C
Shield is nickel plate
Application
Factory automation controls and equipment
Fieldbus
Material handling
Sensor and actuators
Food and beverage services
