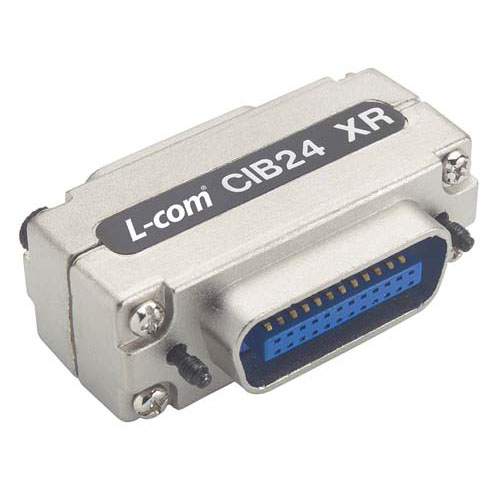

180° Reverse IEEE-488 Extender, Male / Female

SKU CIB24XR
QTY available Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


This unique extender allows mating cables to exit in the reverse direction than standard extenders. This feature is sometimes desirable and necessary to avoid nearby obstructions. Also provides a one inch extension allowing right angle cables that extra margin to clear nearby obstacles. Connectors are male to female and satisfy UL94V-0 flammability requirements. Quantity pricing available, please contact your L-com Sales Representative.

Features
  • Cast aluminum housing provides durability
  • Reverse entry allows cables to exit in the opposite direction
  • 30 microinch gold plated contacts provide reliable connections with repeated mating cycles
  • Connectors are male to female; mating hardware is M3.5 x 0.6 threaded
  • UL94V-0 rated connector insulator satisfies flammability requirements

Application
  • Data Acquisition
  • Instrument Control
  • Test and Measurement
