Description

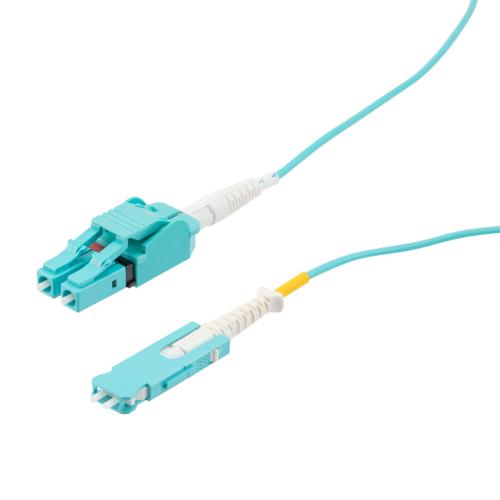

The L-com FCA-SNULCU-M4R-15 is a 15 meter fiber optic cable using a Senko SN® VSFF connector to a standard LC. The SN® connector is a ceramic connector that can be utilized as a Base-8 trunk solution, a Base-2 patching interface, or as a Base-8 connection to next-gen 200G, 400G, and 800G transceivers. The FCA-SNULCU-M4R-15 from L-com is designed for Multimode OM4 applications and uses the same 1.25mm ferrule as the LC industry standard connector with 3x the density. With the reduced footprint of the SN® connector, up to 432 fibers can be present in a single rack unit patch panel. The L-com FCA-SNULCU-M4R-15 can also be used to connect 4-lane pluggable optics such as QSFP-DD, or conventional single lane optics like SFP+. Additionally, Up to four SN® connectors can be plugged into QSFP-DD or OSFP transceivers and can be broken out into four different transceivers without the need for cassettes or fan-outs. The L-com FCA-SNULCU-M4R-15 is in stock and available for same-day shipping, order online today!
Features
- 15 Meter SN® to LC® UPC Polish
- Meets IEC random mating Grade B
- Very Small Form Factor (VSFF) connector, 3x fiber cabling density over Duplex LC
- Unique push-pull boot for simple installation and removal
- Optimized for 400G data rates with QSFP-DD, OSFP and SFP-DD transceivers
- Up to 4x SN® connectors per transceiver
- Direct transceiver breakout in spine/leaf architectures
- Combines two 1.25mm ceramic ferrules
- Easy identification of the connector alignment key
Application
- High-density patching
- QSFP-DD, OSFP and SFP-DD transceiver links for higher data rates
- Hybrid Base-2 cable assemblies combining SN and other duplex connector types
- Hyperscale, edge, enterprise and colocation data centers
