Description

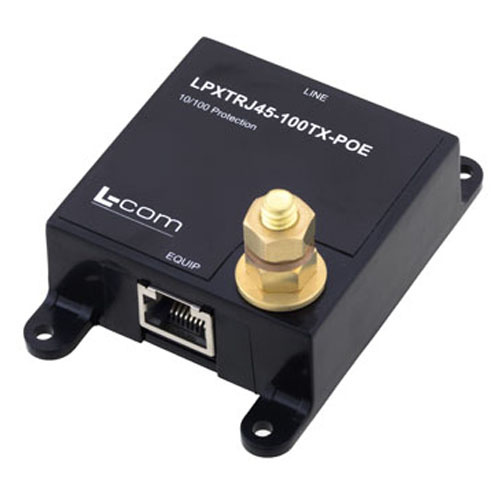

The LPXTRJ45-100TX-POE surge suppressor is designed to protect equipment from transient over-voltages on Power and Ethernet applications. The DC power terminal is connected directly to the positive pins (4,5) and the negative pins (7,8) of the RJ45 jack and when connected to a DC power supply it provides power for the Power and Ethernet circuit. The suppression protects the Ethernet circuit by limiting the magnitude of transient over-voltages that are present on each pair relative to each other and relative to ground. Note: Trim Ground lead to shortest length possible for optimum suppression.
Features
- In-Line Protection for 10/100Base-T PoE data lines
- Integral mounting feet
- Protected Pins (1,2) and (3,6)
Application
- Wired Switches
- Wireless LAN Access Points and Bridges
- IP Surveillance Cameras
- VoIP (Voice over Internet Protocol) Telephones
WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to
www.p65warnings.ca.gov
