Description

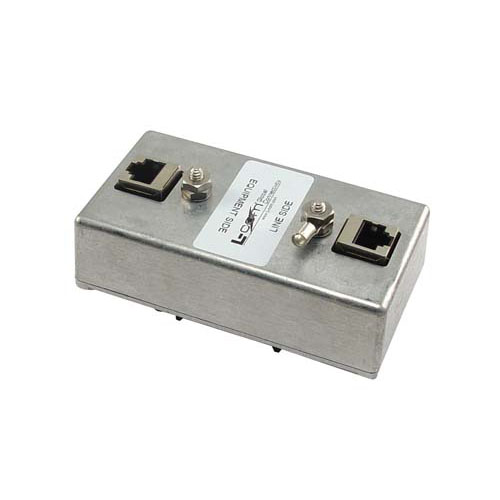

The HGLND-CAT5EJW DIN mountable 3-stage lightning protector provides superior lightning and surge protection for indoor and outdoor 10/100 Base-T Ethernet networks. Also compatible with Power-over-Ethernet (PoE) devices, this unit provides protection to both Ethernet data pairs as well as the PoE DC power feed. The HGLND-CAT5EJW is compatible with Wireless Access Points, Access Servers and Routers, with or without Power-over-Ethernet (PoE) functionality.
The unit features a low capacitance diode array that can withstand large surge currents. The design utilizes a Thyristor diode which switches to a low impedance state once triggered. This offers superior power handling capability compared to TVS or Zener diode based designs. The limits are +/- 58 volts on the four cable pairs.
The HGLND-CAT5EJW features shielded RJ45 jacks. This along with the metal housing helps reduce the effects of EMI interference. A ground lug and terminal is provided directly on the lightning protector housing, providing superior grounding. A second ground and terminal is provided for strapping multiple units together.
This unit can be mounted to a DIN 3 rail using the DIN mounting clip located on the rear of the unit.
For additional information and complete specifications, click on the Data Sheet link below.
The unit features a low capacitance diode array that can withstand large surge currents. The design utilizes a Thyristor diode which switches to a low impedance state once triggered. This offers superior power handling capability compared to TVS or Zener diode based designs. The limits are +/- 58 volts on the four cable pairs.
The HGLND-CAT5EJW features shielded RJ45 jacks. This along with the metal housing helps reduce the effects of EMI interference. A ground lug and terminal is provided directly on the lightning protector housing, providing superior grounding. A second ground and terminal is provided for strapping multiple units together.
This unit can be mounted to a DIN 3 rail using the DIN mounting clip located on the rear of the unit.
For additional information and complete specifications, click on the Data Sheet link below.
Features
- 10/100 Base-T CAT5e protection
- DIN 3 rail mountable
- Industrial grade cast aluminum construction with shielded RJ-45 jacks
- CAT5 and CAT5e compatible
- Supports PoE mode A and B for power
Application
- 10/100 Base-T networks
- IP, network or web cameras
- VoIP telephone
- Wireless access points, servers and routers
