Description
High voltage transients caused by lightning strikes have the ability to easily destroy semiconductor junctions, and thus, cause equipment failure and loss. A lightning strike close to data lines can also cause induced ground currents that can also do serious damage. The AL-D4W-05 high performance lightning protector provides superior protection of RS-422, RS485 or other 5-volt data lines from these transients or surges.
The low capacitance diode array assures that the RS-422/485 signals will not be degraded by the suppressor. This is in comparison to protectors based on high capacitance TVS diodes. The unit will protect two full duplex RS-422 data line or four half duplex RS-485 data lines. For more complete protection, two units should be used, one on each end of the line.

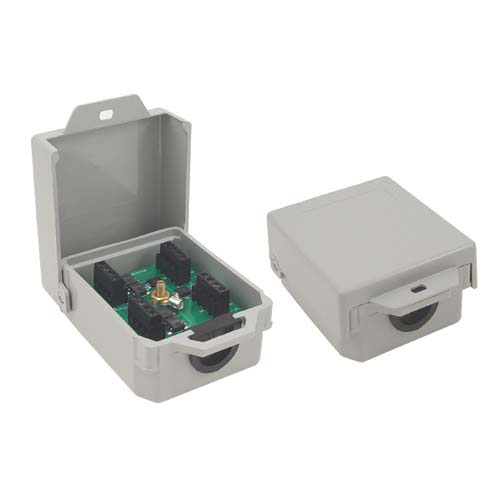

The compact weather resistant housing features a lockable hinged cover and break-away holes are provided on the rear of the enclosure for mounting. The cable grommet may be adjusted to cable size and is removable.
The low capacitance diode array assures that the RS-422/485 signals will not be degraded by the suppressor. This is in comparison to protectors based on high capacitance TVS diodes. The unit will protect two full duplex RS-422 data line or four half duplex RS-485 data lines. For more complete protection, two units should be used, one on each end of the line.
The compact weather resistant housing features a lockable hinged cover and break-away holes are provided on the rear of the enclosure for mounting. The cable grommet may be adjusted to cable size and is removable.
Features
- RS-422 / RS-485 protection
- Screw terminal blocks
- Impact and weather resistant
- Locking hinged cover
- Protection of two full duplex RS-422 data lines or four half duplex RS-485 data lines
Application
- Industrial and building automation
- RTD applications
- AISG control lines
- RS-422/RS-485 communications
