Description

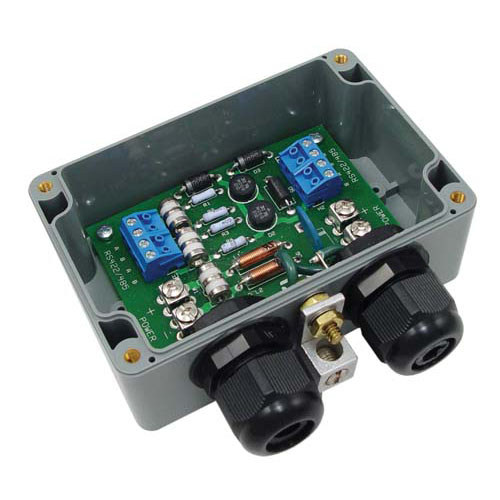

The HyperLink ALS-D25P1228AW is designed to provide superior lightning and surge protection for RS-422/485 control and 12-28VAC power lines. These protectors incorporate individual protection circuits for the RS-422/485 control lines and DC power lines. All housed in one NEMA rated weatherproof enclosure.
RS-422/485 Control Lines
A high power 3-stage design is used to provide protection for the RS-422/485 control line. The 3-stage design can handle higher-level transients than a protector that uses only diodes. The first stage is comprised of a differential gas discharge tube. Stage two is a pair of current limiting series resistors and the final stage is a low capacitance diode array. The RS-422/485 control line is connected to the protector via its screw terminal blocks. The terminal blocks are removable to ease wiring. The ALS-D25P1228AW is designed to work with either 1 full duplex or 2 half duplex RS-422/485 lines.
12-28VAC Power Lines
The 12-28VAC power lines are also protected using a 3-stage design. This provides superior protection from transients and surges. The first stage is comprised of a differential gas discharge tube. Stage two is a pair of suppression coils and in the final stage a Metal Oxide Varistor (MOV) is used. Power lines are connected to the protector via high current rated screw terminals.
Weatherproof Design
These units feature a weatherproof ABS enclosure with gasketed cover and concealed mounting holes. Water tight cable glands provide entry and exit points for cables. A ground clamp on the enclosure's exterior provides a tie point for earth ground.
For mounting to masts up to 2 inches in diameter, the HGX-PMT24 mast mounting kit is available (sold separately).
This protector is also available in the following power configurations:
12VDC: ALS-D25P12DW
15VDC: ALS-D25P15DW
24VDC: ALS-D25P24DW
For additional information and complete specifications, click on the data sheet link below.
RS-422/485 Control Lines
A high power 3-stage design is used to provide protection for the RS-422/485 control line. The 3-stage design can handle higher-level transients than a protector that uses only diodes. The first stage is comprised of a differential gas discharge tube. Stage two is a pair of current limiting series resistors and the final stage is a low capacitance diode array. The RS-422/485 control line is connected to the protector via its screw terminal blocks. The terminal blocks are removable to ease wiring. The ALS-D25P1228AW is designed to work with either 1 full duplex or 2 half duplex RS-422/485 lines.
12-28VAC Power Lines
The 12-28VAC power lines are also protected using a 3-stage design. This provides superior protection from transients and surges. The first stage is comprised of a differential gas discharge tube. Stage two is a pair of suppression coils and in the final stage a Metal Oxide Varistor (MOV) is used. Power lines are connected to the protector via high current rated screw terminals.
Weatherproof Design
These units feature a weatherproof ABS enclosure with gasketed cover and concealed mounting holes. Water tight cable glands provide entry and exit points for cables. A ground clamp on the enclosure's exterior provides a tie point for earth ground.
For mounting to masts up to 2 inches in diameter, the HGX-PMT24 mast mounting kit is available (sold separately).
This protector is also available in the following power configurations:
12VDC: ALS-D25P12DW
15VDC: ALS-D25P15DW
24VDC: ALS-D25P24DW
For additional information and complete specifications, click on the data sheet link below.
Features
- Individual protection circuits for RS-422/485 control lines and 12-28VAC power lines
- 3-Stage protection provided for all lines
- Also available in 12VDC, 15VDC and 24VDC versions
- NEMA rated enclosure with gasketed cover and concealed mounting holes
- Will work with Full or Half Duplex RS-422/485 lines
Application
- Pan-Tilt-Zoom (PTZ) camera controllers
- Pool/spa and industrial controllers and keyboards
- Analog or IP video surveillance cameras
- Door/gate access control with RS-485 and power
- RS-422/485 lines with 12-28VAC supply voltage
