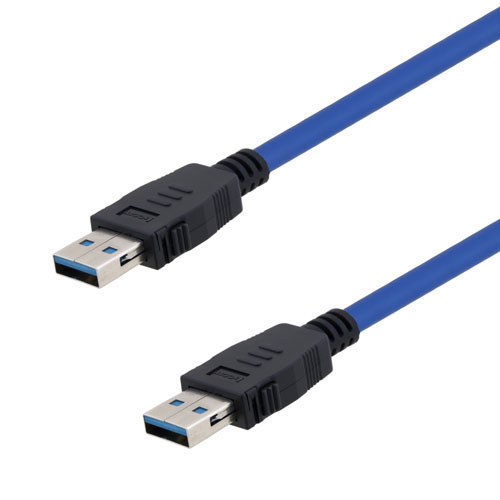

USB 3.0 Latching Type A male to male 0.75M Cable Assembly
Description
These unique cable assemblies feature two latching Type A USB plugs which provide lock down mating retention with any USB Type A jack. Fully shielded and USB 3.0 compliant, this cable contains two 24 AWG power conductors and two 30 AWG shielded pair for the data lines and one unshielded twisted pair 30AWG. Color is blue.
Features
Unique latching feature provides a secure connection to any USB type A jack
30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
2X, Twisted pair, 30AWG with ALUM/POLY Foil Shield and Drain wire. One Unshielded Twisted Pair, 30AWG. 2 COND., 24AWG.
Available in lengths of 0.3, 0.5, 0.75, 1 and 1.5 meters
Color Blue
Application
PC Peripheral Interconnects
Confined space USB applications
Data Acquisition
Portable Data Storage
Test and Measurement
