Description

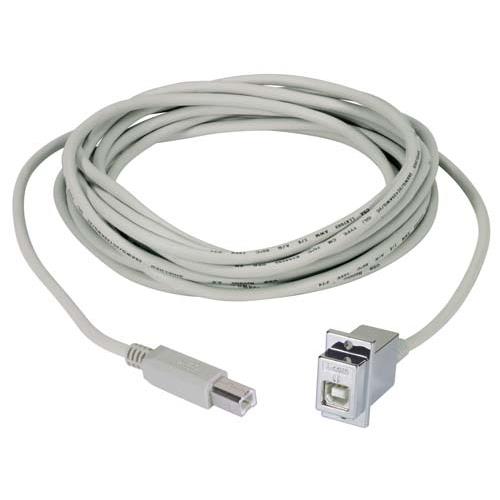

Another unique panel mount USB option features a bulkhead Type B jack to a molded Type B plug attached via USB 2.0 compliant cable. These cables can be directly connected to a mating connector inside an enclosure. These assemblies are fully shielded and use L-com's popular ECF504 style housing that can be used with virtually any panel thickness. The recommended 4-40 mounting screws must be purchased separately (P/N ECF440). Twisted pair data lines help reduce crosstalk while 20 AWG power conductors enable maximum power transfer from host to peripheral.Custom lengths available upon request with minimal quantity requirements.
Features
- 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
- 20 AWG power leads allow for maximum power transfer
- Allows USB cables to be passed through panels or enclosures
- Connectors are USB B panel mount female to standard USB B male
- Screw mount for secure installations
Application
- Data Acquisition
- PC Peripheral Interconnects
- Test and Measurement
