Description

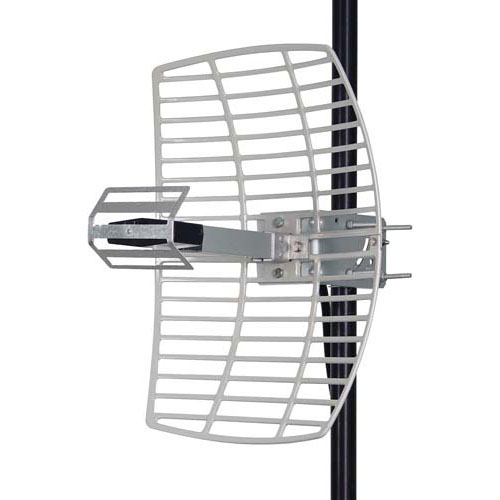

The HyperLink Directional Mini-Reflector Grid WiFi Antenna provides 15 dBi gain with a 16° horizontal beam-width for directional applications. Its compact design makes it nearly invisible in most installations, and it can be installed for either vertical or horizontal polarization. It is ideally suited for 2.4GHz ISM band applications such as IEEE 802.11b/g/n wireless LAN systems.
This antenna's construction features a die cast aluminum reflector grid for superior strength. This antenna's 2-piece reflector grid is simple to assemble and significantly reduces shipping costs. The grid surface is UV powder coated for durability and aesthetics. The open-frame grid design minimizes wind loading.
The HG2415EG antenna is supplied with a 60 degree tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. It can be adjusted up or down from 0° to 60°.
Available in Singles
This antenna is also available in Singles - HG2415EG-NF
For additional information and complete specifications, see the data sheet in the downloads section.
This antenna's construction features a die cast aluminum reflector grid for superior strength. This antenna's 2-piece reflector grid is simple to assemble and significantly reduces shipping costs. The grid surface is UV powder coated for durability and aesthetics. The open-frame grid design minimizes wind loading.
The HG2415EG antenna is supplied with a 60 degree tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. It can be adjusted up or down from 0° to 60°.
Available in Singles
This antenna is also available in Singles - HG2415EG-NF
For additional information and complete specifications, see the data sheet in the downloads section.
Features
- All weather operation
- Easy to assemble
- UV stable light gray powder coat finish
- 16° beam-width & 12 inch coax lead
- Die-cast aluminum construction
Application
- 2.4 GHz ISM Band
- IEEE 802.11b/g/n Wireless LAN Applications
- Point to Point Systems & Point to Multi-point Systems
- WiFi Systems & Long-range Directional Applications
- Wireless Bridges, Backhaul Applications & Wireless Video Systems
