2.4 GHz 16 dBi Dual Polarized MIMO Panel Antenna - N-Female Connectors

SKU HG2416DP
QTY available 45
Quantity Price
1 - 9 $189.99
10 - 24 $174.79
25 - 99 $159.59
100 + Call Us
Price $189.99

All Prices are in US Dollars and do not include duties

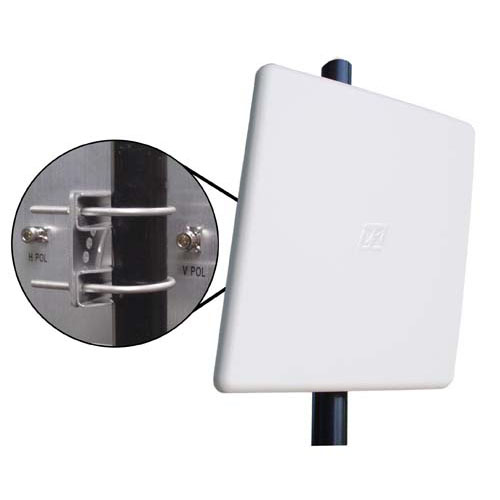

The HyperLink HG2416DP Flat Panel Antenna combines vertical and horizontal polarization with high gain in a single enclosure. It is a professional quality antenna designed primarily for MIMO point-to-multipoint and point-to-point applications in the 2.4 GHz frequency bands. The unit can be used with APs and Routers with 1 or 2 antenna ports.

Rugged and Weatherproof

This antenna features a heavy-duty UV-resistant plastic radome for all-weather operation. The HG2416DP antenna is supplied with a stainless steel tilt and swivel mast mount kit. This allows quick installation at various degrees of up/down tilt for easy alignment.

Click on the Downloads tab for additional information and complete specifications.


Features
  • Dual polarity feed system - (2) N-Female connectors
  • Includes tilt and swivel mast mounting
  • Vertical and horizontal polarization
  • High gain operation
  • UV-resistant radome for all-weather operation

Application
  • 2.4 GHz ISM band
  • IEEE 802.11b/g/n Wireless LAN
  • MIMO applications
  • Public wireless hotspot
  • Wireless Internet Provider "Cell" sites


Documents and Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
Vertical/Horizontal
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.6:1
