Description

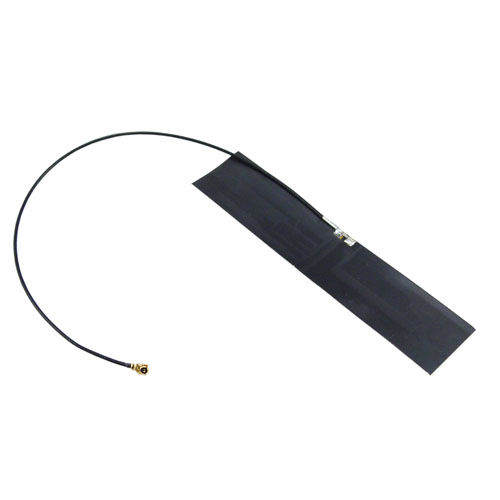

The HyperLink HG72705FPU-UFL is a flexible omni-directional antenna designed to directly integrate into devices requiring wireless capability. By embedding these antennas directly into a device, the need for external antennas is eliminated. The omni-directional design of the HG72705FPU-UFL makes it ideal for multipoint and mobile wireless systems since it provides 360° of coverage.
The HG72705FPU-UFL is specifically designed for DAS (Distributed Antenna Systems) which are used to distribute Cellular and WiFi signals throughout a building or area. The multi-band design of this antenna eliminates the need to utilize different antennas for each frequency. This antenna is very useful for LPWAN/IoT/M2M applications such as LoRA, LTE-M and NB-IoT.
Constructed from a flexible polymer, the HG72705FPU-UFL can be attached via its adhesive backing to straight as well as curved surfaces. This provides engineers greater flexibility when designing the wireless equipment for which the antenna will be incorporated into.
In addition to our standard embedded antennas, L-com engineering can also custom design antennas for the customer's specific applications.
For additional information and complete specifications, click on the Data Sheet in the Downloads section.
The HG72705FPU-UFL is specifically designed for DAS (Distributed Antenna Systems) which are used to distribute Cellular and WiFi signals throughout a building or area. The multi-band design of this antenna eliminates the need to utilize different antennas for each frequency. This antenna is very useful for LPWAN/IoT/M2M applications such as LoRA, LTE-M and NB-IoT.
Constructed from a flexible polymer, the HG72705FPU-UFL can be attached via its adhesive backing to straight as well as curved surfaces. This provides engineers greater flexibility when designing the wireless equipment for which the antenna will be incorporated into.
In addition to our standard embedded antennas, L-com engineering can also custom design antennas for the customer's specific applications.
For additional information and complete specifications, click on the Data Sheet in the Downloads section.
Features
- 8 in. (203mm) 1.13mm coax cable
- Compact size
- Designed for omni-directional applications
- U.FL/IPX connector (custom connectors options and cable lengths available)
- Flexible FPCB design with adhesive backing
Application
- Cellular and LTE networks
- DAS (Distributed Antenna Systems)
- Integrate into self-contained wireless equipment
- Embedded applications requiring integration flexibility
- LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M applications.
