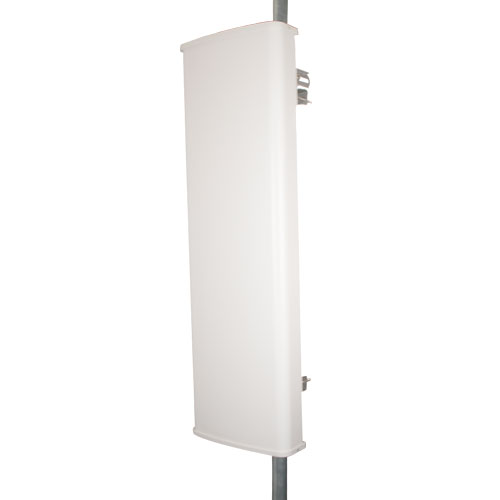

L-Com’s WiFi 6e Sector Antenna HG2358-18XP-065-2NF is in stock and ready to ship on the same-day of order. The frequency range of the HG2358-18XP-065-2NF sector antennas is 2300 MHz to 5850 MHz with a gain of 17–20 dBi. This dual band MIMO antenna supports Wi-Fi latest frequency band and has a 65-degree beam width. The 2- ports 2300-5850 MHz sector antenna include N-type female connectors with +/-45 slant polarization.
The N-type MIMO omni antenna covers a wide range of frequency bands up to 5.8GHZ and is shorter than 40-inches for universal zoning compliance. The HG2358-18XP-065-2NF unlicensed WiFi 6 frequency bands sector antenna is “future-proof” in regard to network capabilities without any add-ons. The type N female sector antenna can handle maximum input power of 100 watts and uses universal radio mounts.
The WiFi 6e antenna is 2x2 MIMO ready and offers Dual slant +/- 45 polarizations, degree and 90-degree options and covers extensive frequency bands up to 5.8 GHz. These Wi-Fi 6 antennas are a good fit for the telecommunications industry and for indoor (stadium, large arenas) plus outdoor applications. The HG2358-18XP-065-2NF antennas are equipped with universal radio brackets.
These MIMO muti-port Wi-Fi 6e antennas can operate in the unlicensed bands of 6 GHz. These omni antennas can also operate within the latest Wi-Fi 6 bands of 2.3 GHz to 5.8 GHz.
Contact L-Com’s expert technical support for assistance with the Wi-Fi sector antenna or any sector antenna. Download our HG2358-18XP-065-2NF datasheet with specifications and CAD drawing with dimensions for details. Our knowledgeable sales team simplifies the purchasing process and ensures that your Wi-Fi 6e sector antenna cable will be exact to specification.
Order your Wi-Fi 6e Sector Antenna HG2358-18XP-065-2NF from L-com today. There is no MOQ (minimum order quantity) and the product ships same day from our warehouse.
Features
- Dual Band frequency coverage for 2300 MHz to 2700 MHz and 5150 MHz to 5850 MHz
- Very High Gain 17 dBi to 20 dBi Directional Antenna with MIMO peak performance antennas
- Supports low-latency, bandwidth-hungry applications like high-definition video and augmented reality/virtual reality applications
- Sector antenna with 2 x Type N Female connectors
- 65° beamwidth with dual +/-45 slant polarization
- 100 W max input power per port
- Easy Install mounting bracket provided
- Weatherproof ABS – UV Resistance PVC radome
Application
- Outdoor and Indoor dual band Wi-Fi6 2.4 GHz and 5 GHz applications supported
- Wireless LAN systems & IEEE.802.16ax applications with MU-MIMO and OFDMA
- WiFi 6 and WiFi 6E enables higher datarates up to 35% with enhanced efficiency and speed
- Increased Bandwidth enhances spectral efficiency and supports faster radio applications
- Smart cities expansion for coverage and IOT / IIOT
- Point-to-point (PtP) or point-to-multipoint (PtMP) applications
