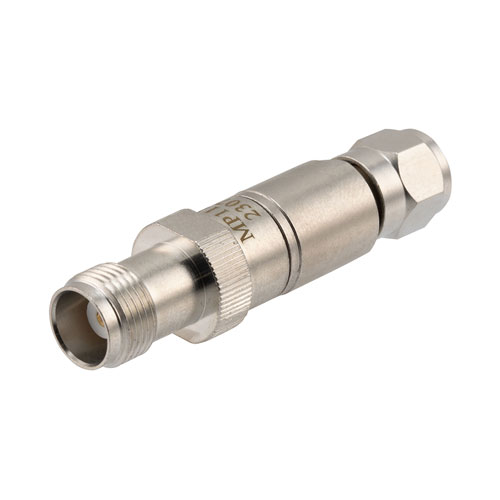

0.5 Watt 50 Ohm TNC Female to 75 Ohm F Male Matching Pad Operating from DC to 3 GHz

L-com's LCMP1111 is a 50 ohm TNC female to 75 ohm F male matching pad that operates from DC to 3 GHz. This TNC to F impedance matching pad offers a low VSWR of 1.25:1 max and attenuation of 7.5 dB max. LCMP1111 50 ohm to 75 ohm minimum loss pad has a maximum CW power rating of 0.5 Watt. Matching pads are used to match the different impedance between two devices, maximizing power transfer between the two impedances. L-com's minimum loss impedance matching pads are available in various connector combinations to fit your needs, all of which ship the same day.
