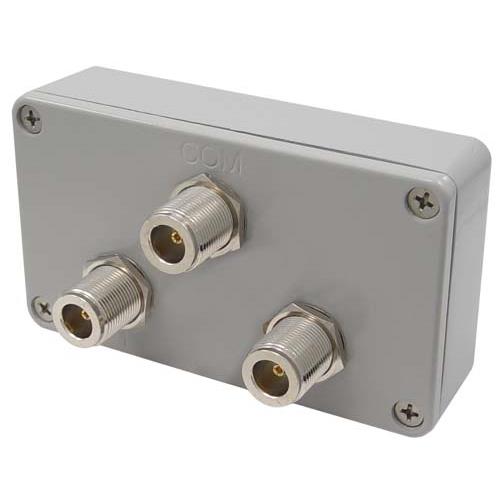

2-Way 900 MHz Signal Splitter N-Female Connector

SKU SC902N
QTY available 203
Quantity Price
1 - 9 $155.99
10 - 24 $143.51
25 - 99 $131.03
100 + Call Us
Price $155.99

All Prices are in US Dollars and do not include duties



HyperGain 900 MHz Signal Splitters / Signal Combiners are used for connecting more than one antenna to a single radio. They feature weather-proof construction and can be installed indoors or outdoors. This 2-way splitter can be used with amplified systems since they will pass DC power to all ports.

Note:
To ensure proper operation, any open splitter ports should be terminated with a high quality 50 Ohm terminator. We recommend the Hyperlink ANM-TERM1 0-6 GHz 50 Ohm N-Male Terminator.

This splitter can be mounted to a wall or shelf as well as mast mounted. See accessories below.


Features
  • Used to split 900MHz RF signals
  • 800-1000 MHz frequency range
  • Industrial grade cast aluminum construction
  • DC power will pass to all ports
  • Available with N-Female connectors

Application
  • Compatible with 900 MHz ISM band and 900 MHz cellular applications
  • Connect more than one antenna to a single radio


Documents and Resources

Key Specifications

Key Specifications

Connector Series In
N
Connector Gender In
Female
Minimum Frequency
800 MHz
Maximum Frequency
1 GHz
Number of Output Ports
2 Port
Impedance
50 Ohm
Maximum Input Power
25 Watt
