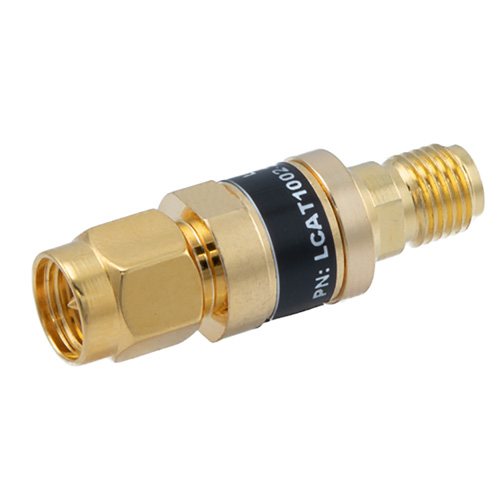

2W/20 dB RF Fixed Attenuator, SMA Male to SMA Female Brass Gold Body Up to 3 GHz

SKU LCAT1002-20
QTY available 16
Quantity Price
1 + $39.19
Price $39.19

All Prices are in US Dollars and do not include duties



LCAT1002-20 is a 20dB RF fixed attenuator from L-com. With gold plated brass body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other. The part is available in stock with same day shipping.

Features
  • Attenuation accuracy 20±0.6dB
  • Frequency range from DC to 3GHz
  • Input Power 2W max
  • Operating temp range from -55 to 125C
  • VSWR <1.2

Application
  • Instrumentation
  • Production systems
  • Prototyping and characterization
  • Precision measurements
  • RF test systems


Documents and Resources

Key Specifications

Key Specifications

Attenuator Design
Fixed
Active/Passive
Passive
Connection Type
In-Series
Connector-In Impedance
50 Ohms
Connector-Out Impedance
50 Ohms
Max Freq
3 GHz
Nominal Attenuation
20 dB
Attenuation Accuracy, Typ
0.6 dB
VSWR, Max
1.2:1
Input Power, Max (CW)
2 Watts
Body Material
Brass
Connector-In Series
SMA
Connector-In Gender
Male
Connector-Out Series
SMA
Connector-Out Gender
Female
Max Operating Temperature
125 deg C
Min Operating Temperature
-55 deg C
