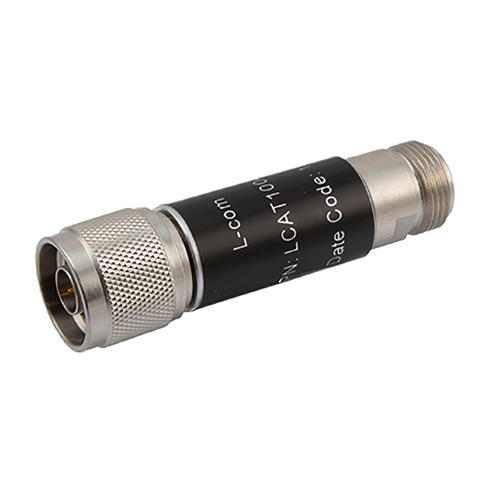

2W/3 dB RF Fixed Attenuator, N Male to N Female Brass Nickel Body Up to 6 GHz

LCAT1004-03 is a 3dB RF fixed attenuator from L-com with excellent electrical performance. The attenuator has operating frequency range from DC to 6GHz and coaxial in-line design with N-type male connector on one end and N-type female connector on the other. The part is available in stock with same day shipping.

Features
  • Frequency range from DC to 6GHz
  • Operating temp range from -55 to 125C
  • VSWR <1.30
  • Attenuation accuracy 3±0.5dB
  • Input Power 2W max
Application
  • Production systems
  • Prototyping and characterization
  • RF test systems
  • Instrumentation
  • Precision measurements

SKU LCAT1004-03
QTY available 7
Quantity Price
1 - 24 $24.15
25 - 49 $22.94
50 - 99 $21.74
100 + Call Us

All Prices are in US Dollars and do not include duties

Price $24.15

Key Specifications
