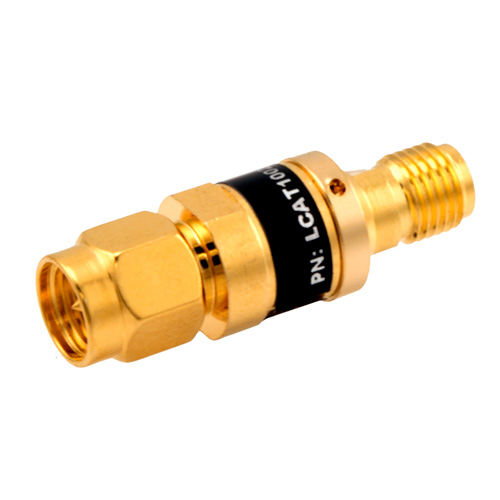

2W/5 dB RF Fixed Attenuator, SMA Male to SMA Female Brass Gold Body Up to 3 GHz

LCAT1002-05 is a 5dB RF fixed attenuator from L-com. With gold plated brass body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other. The part is available in stock with same day shipping.

Features
  • Attenuation accuracy 5±0.5dB
  • VSWR <1.2
  • Frequency range from DC to 3GHz
  • Input Power 2W max
  • Operating temp range from -55 to 125C
Application
  • Instrumentation
  • Precision measurements
  • RF test systems
  • Production systems
  • Prototyping and characterization

SKU LCAT1002-05
QTY available 6
Quantity Price
1 - 24 $36.39
25 - 49 $34.57
50 - 99 $32.75
100 + Call Us

All Prices are in US Dollars and do not include duties

Price $36.39
