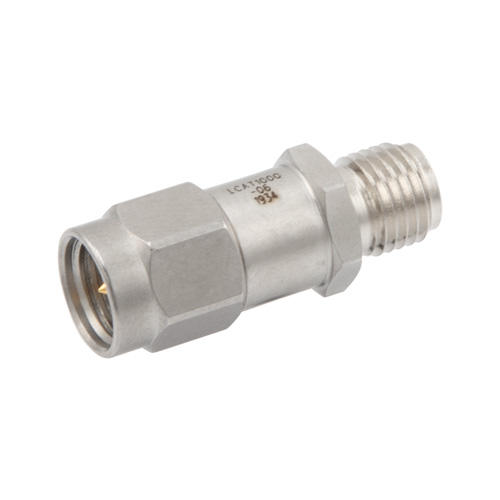

2W/6dB RF Fixed Attenuator, SMA Male to SMA Female Passivated Stainless Steel Body Up to 6 GHz

LCAT1000 is a RF fixed attenuator from L-com. With hex nut on the body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other. The part is available in stock with same day shipping.

Features
  • Attenuation 6±0.5 dB
  • Max Power 2 Watt (CW)
  • DC to 6 GHz Frequency Range
  • SMA connector interface
  • VSWR < 1.2:1
Application
  • Instrumentation
  • Precision measurements
  • Production systems
  • Prototyping and characterization
  • RF test systems

SKU LCAT1000-06
QTY available 22
Quantity Price
1 - 24 $48.99
25 - 49 $46.54
50 - 99 $44.09
100 + Call Us

All Prices are in US Dollars and do not include duties

Price $48.99
