2W/7 dB RF Fixed Attenuator, N Male to N Female Brass Nickel Body Up to 3 GHz

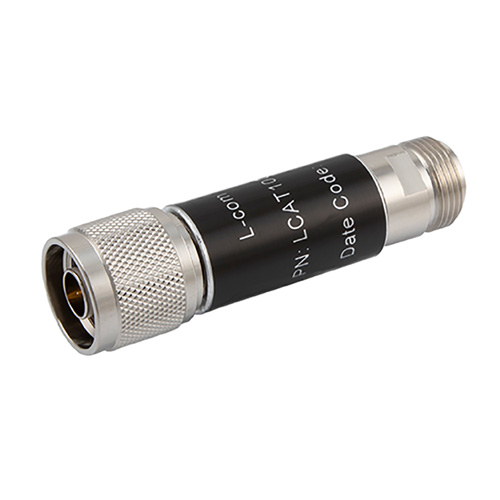

LCAT1003-07 is a 7dB RF fixed attenuator from L-com with excellent electrical performance. The attenuator has operating frequency range from DC to 3GHz and coaxial in-line design with N-type male connector on one end and N-type female connector on the other. The part is available in stock with same day shipping.

Features
  • Operating temp range from -55 to 125C
  • VSWR <1.20
  • Attenuation accuracy 7±0.4dB
  • Frequency range from DC to 3GHz
  • Input Power 2W max
Application
  • Production systems
  • RF test systems
  • Instrumentation
  • Precision measurements
  • Prototyping and characterization

SKU LCAT1003-07
QTY available 16
Quantity Price
1 - 24 $16.86
25 - 49 $16.02
50 - 99 $15.17
100 + Call Us

All Prices are in US Dollars and do not include duties

Price $16.86

Key Specifications

Key Specifications

Datasheet
