  6. 2W/7 dB RF Fixed Attenuator, N Male to N Female Brass Nickel Body Up to 6 GHz

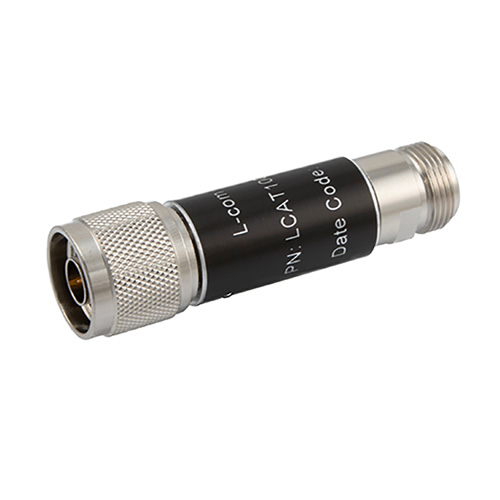

2W/7 dB RF Fixed Attenuator, N Male to N Female Brass Nickel Body Up to 6 GHz

LCAT1004-07 is a 7dB RF fixed attenuator from L-com with excellent electrical performance. The attenuator has operating frequency range from DC to 6GHz and coaxial in-line design with N-type male connector on one end and N-type female connector on the other. The part is available in stock with same day shipping.

Features
  • Attenuation accuracy 7±0.5dB
  • Input Power 2W max
  • Frequency range from DC to 6GHz
  • Operating temp range from -55 to 125C
  • VSWR <1.30
Application
  • Instrumentation
  • Precision measurements
  • Prototyping and characterization
  • Production systems
  • RF test systems

SKU LCAT1004-07
QTY available 12
Quantity Price
1 - 24 $24.15
25 - 49 $23.18
50 - 99 $22.46
100 + Call Us

All Prices are in US Dollars and do not include duties

Price $24.15
