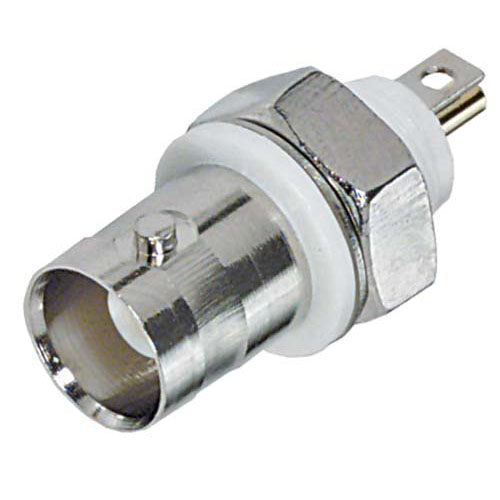

50 Ohm BNC Bulkhead Jack, Isolated from Ground (3/8" D-Hole)

SKU BAC1503
QTY available Call us
Quantity Price
1 - 24 $5.99
25 - 49 $5.69
50 - 99 $5.39
100 + Call Us
Price $5.99

All Prices are in US Dollars and do not include duties



This insulated female receptacle BNC RF connector features a isolated dielectric rear mount single D bulkhead with nut and lock washer as well as a solder cup terminal with grounding tab for attachment to a PCB. BNC connectors connect with a twist lock, making them popular for RF applications.

Features
  • Dielectric mounted surface provides electrical isolation
  • Gold plated contact pin reduces signal loss
  • Nickel plated body provides optimum resistance to corrosion
  • Design includes a integrated ground terminal
  • Rear bulkhead panel mount design

Application
  • Coaxial cable patching
  • Coaxial OEM applications
  • MDF/IDF


Documents and Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
BNC
Connector Gender
Male
Impedance
50 Ohm
Body Style
Straight
Mount Method
Bulkhead
