50 Ohm BNC Female Bulkhead- Crimp on Jack for RG174/188/316 Cable

SKU BAC540
QTY available 801
Quantity Price
1 - 24 $13.79
25 - 49 $13.10
50 - 99 $12.41
100 + Call Us
Price $13.79

All Prices are in US Dollars and do not include duties

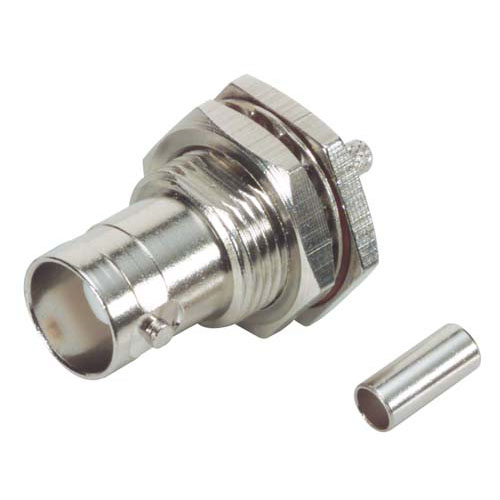

This female BNC bulkhead style RF connector is designed for crimp attachment to the widely used RG174/188/316 50 Ohm coaxial cables. The standard .5 inch single D bulkhead design is commonly found on many panel designs. BNC connectors connect with a twist lock, making them popular for RF applications.

Features
  • Associated crimp tooling and bulk cable available
  • Gold plated contact pin reduces signal loss
  • Crimp style termination to RG174/188/316 coaxial cables
  • Nickel plated body provides optimum resistance to corrosion
  • Standard bulkhead .5 inch single D mounting hole

Application
  • MDF/IDF
  • Coaxial cable patching
  • Coaxial OEM applications


Documents and Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
BNC
Connector Gender
Female
Impedance
50 Ohm
Body Style
Straight
Mount Method
Bulkhead
Interface Type 1
RG174
Interface Type 2
RG188
Interface Type 3
RG316
