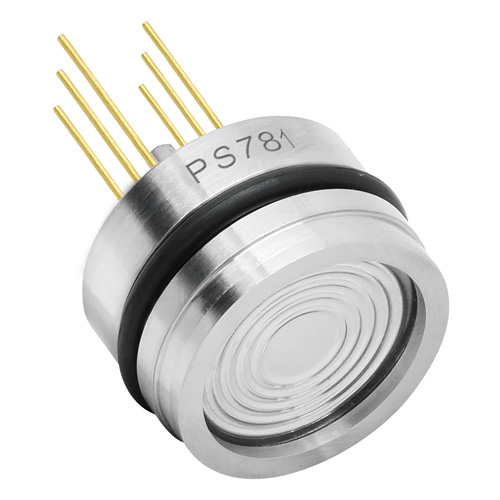

Highly Stable Pressure Sensor, 0-200kPa, Gauge, Compensated, 19mm diameter

PS781-07G0L1 is a highly stable piezo-resistive pressure sensor with wide temperature compensation and zero correction. It contains a highly stable silicon die, stainless steel 316L housing with diameter 19mm. The measured pressure is transmitted onto the silicon die through the 316L diaphragm and inner media. This transforms the measured pressure into an electrical signal.

Features
  • Isolated construction, enable to measure various media
  • Long-term stability ±0.1%FS/year
  • Pressure range: 0-200kPa
  • Wide temperature compensation
  • 19mm diameter OEM pressure sensor
Application
  • Cooling equipment and air conditioning systems
  • Gas and liquid pressure measurements
  • Industrial process controls
  • Level measurement
  • Aviation and navigation systems

SKU PS781-07G0L1
QTY available 4
Quantity Price
1 - 24 $30.40
25 - 49 $28.88
50 - 99 $27.36
100 + Call Us

All Prices are in US Dollars and do not include duties

Price $30.40

Key Specifications

Key Specifications

Datasheet
View All
