Pressure Sensor, 0-1MPa, Gauge, Compensated, with cap 16.8mm diameter
Description

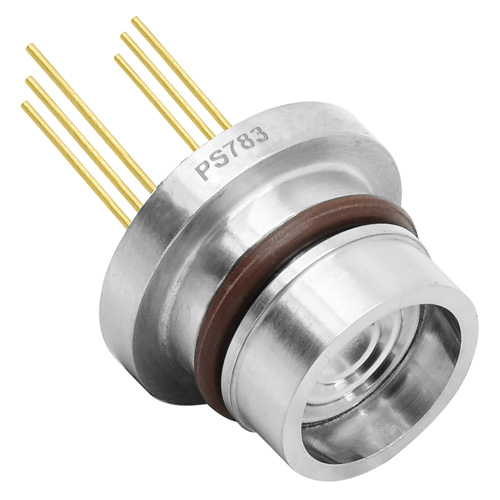

PS783-I10GL1 is a highly stable and reliable piezo-resistive pressure sensor with wide temperature compensation and zero correction. Optimized for middle to high pressures, the PS783-I10GL1 contains a highly stable silicon die, stainless steel 316L housing with diameter 12.6 mm. The measured pressure is transmitted onto the silicon die through the 316L diaphragm and inner media. This transforms the measured pressure into an electrical signal.
Features
12.6mm compact size
Isolated construction, enable to measure various fluid media
Long-term stability ±0.1%FS/year
Pressure range: 0-1MPa
Wide temperature compensation range
Application
Aviation and navigation systems
Industrial process control
Level measurements
Cooling equipment and air conditioning systems
Gas and liquid pressure measurements
