Pressure Sensor, 0-35 kPa, Stainless 316L, high static pressure 20MPa, 1.5X overpressure

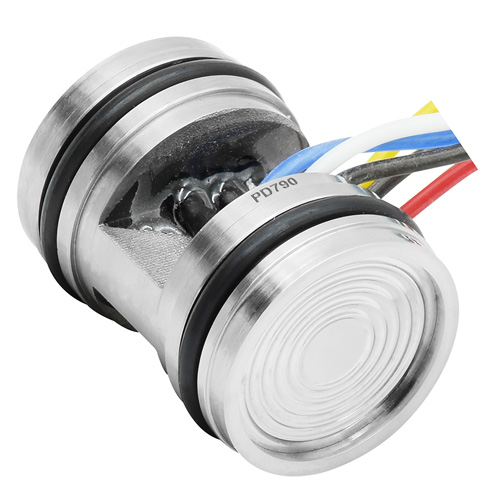

PD790-0AM2 is a highly stable and reliable piezo-resistive pressure sensor with wide temperature compensation and zero correction. It contains a highly stable silicon die, stainless steel 316L housing with diameter 19 mm. The measured differential pressure is transmitted onto the silicon die through the 316L diaphragm and inner media. This transforms the measured pressure into an electrical signal.

Features
  • High Static Pressure 20MPa
  • Isolated Construction, enable to measure various liquids and gases
  • Long-term stability ±0.3%FS/Year
  • Constant Current/Constant Voltage power supply
  • Pressure range: 0-35kPa
Application
  • Industrial process control
  • Pressure checking meter
  • Differential pressure measurement
  • Gas, liquid pressure measurement
  • Venture and eddy-current flow meter

SKU PD790-0AM2
QTY available 1
Quantity Price
1 - 9 $56.00
10 - 24 $53.76
25 - 99 $51.52
100 + Call Us

All Prices are in US Dollars and do not include duties

Price $56.00
