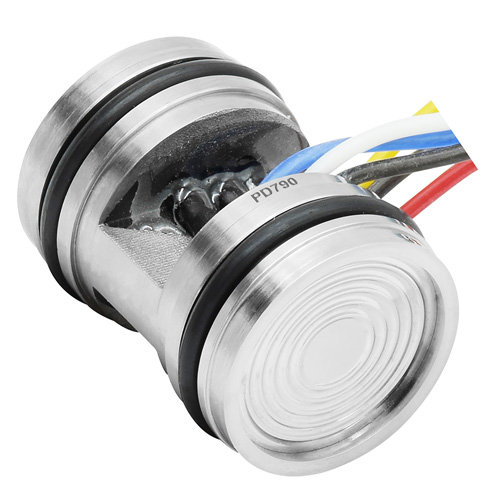

PD790-09M2 is a highly stable and reliable piezo-resistive pressure sensor with wide temperature compensation and zero correction. It contains a highly stable silicon die, stainless steel 316L housing with diameter 19 mm. The measured differential pressure is transmitted onto the silicon die through the 316L diaphragm and inner media. This transforms the measured pressure into an electrical signal.
Features
Long-term stability ±0.3%FS/Year
Constant Current/Constant Voltage power supply
High Static Pressure 20MPa
Isolated Construction, enable to measure various liquids and gases
Pressure range: 0-700kPa
Application
Gas, liquid pressure measurement
Pressure checking meter
Differential pressure measurement
Industrial process control
Venture and eddy-current flow meter
