  2. Passive PM DWDM, Field Unit Cassette, Mux & DeMux Combo, 4 Channel, 100 GHz spacing, start Ch 24-27, .9mm, 1M cable with SC/APC connectors.

Passive PM DWDM, Field Unit Cassette, Mux & DeMux Combo, 4 Channel, 100 GHz spacing, start Ch 24-27, .9mm, 1M cable with SC/APC connectors.

SKU PPMDW-AC04-124-195
QTY available 4
Quantity Price
1 - 4 $2,480.00
5 - 9 $2,430.40
10 - 24 $2,380.80
25 + Call Us
Price $2,480.00

All Prices are in US Dollars and do not include duties

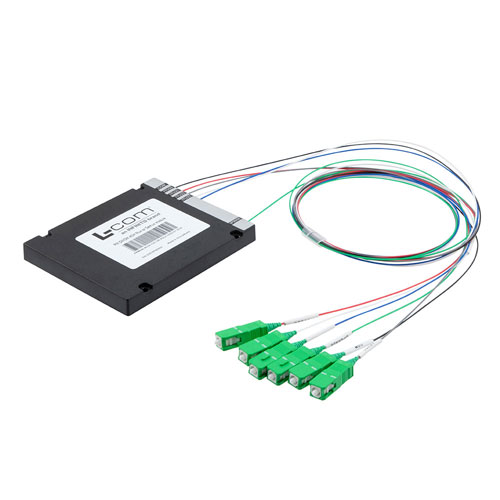

The L-com PPMDW-AC04-124-195 is a polarized maintaining DWDM Passive Filter with 4 Channels. The L-com PPMDW-AC04-124-195 is a Mux & DeMux Combo (100mmX80mmX10mm) Cassette filter offering 100 GHz Channel Spacing that includes an upgrade port with no additional parts necessary. The L-com PPMDW-AC04-124-195 has 4 channels, starting with ITU Ch 24-27 and has a .9mm diameter 1M cable with SC/APC connectors. The L-com PPMDW-AC04-124-195 is one of thousands fiber optic products in-stock and ready to ship. Contact our knowledgeable technical support and sales staff with your questions on fiber optic connectivity or other L-com products.

Features
  • Polarized Maintaining
  • Low Insertion Loss
  • Compact Size
  • Cassette Module
  • Mux & DeMux Combo
  • 100 GHz, ITU Ch 24-27
  • .9mm loose tube cable
  • 1M, SC/APC
  • Upgrade Port

Application
  • Communications Networks
  • Coherent Detection
  • Fiber Sensors
  • Research and Development
