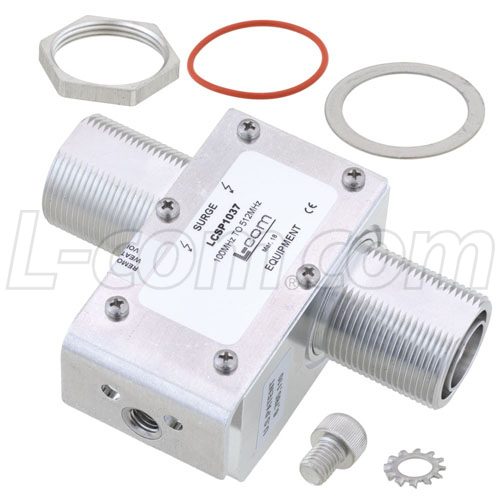

7/16 F/F In/Out RF Surge Protector 100MHz - 512MHz 750W IP67 20kA Surge Filter

SKU LCSP1037
QTY available 11
Quantity Price
1 - 9 $39.75
10 - 24 $38.16
25 - 99 $36.57
100 + Call Us
Price $39.75

All Prices are in US Dollars and do not include duties



RF surge protector (also known as lightning arrester) LCSP1037 from L-com utilizing a patented filter surge protection technology acts as a high-band filter shunting surge energy to ground to protect critical hardware while maintaining the RF performance. This RF surge protector component is manufactured in a coaxial in-line design with wide operating frequency range and available in stock with same day shipping .

Features
  • Multi-strike capability
  • Waterproof IP67 rated
  • DC Block
  • Max RF Power 750W
  • VSWR <1.1

Application
  • Public safety systems
  • Emergency response systems


Documents and Resources

Key Specifications

Key Specifications

Impedance
50 Ohm
Connector In Series
7/16 DIN
Connector In Gender
Female
Connector Out Series
7/16 DIN
Connector Out Gender
Female
Minimum Frequency
100 MHz
Maximum Frequency
512 MHz
Maximum Input Power
750 Watts
Direction
Bidirectional
Throughput Energy
0.5 uJ
