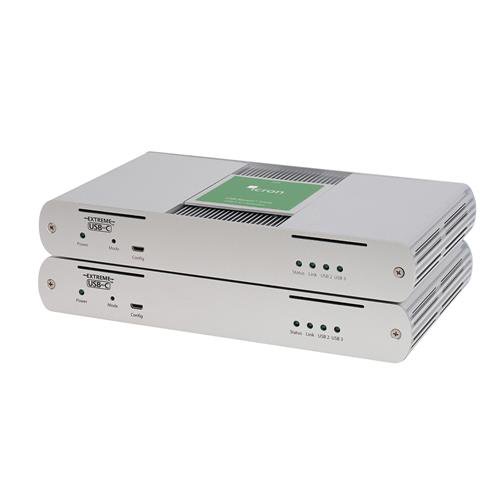

Icron USB 3.1 Raven™ 3104 4-Port Cat6a/7 USB Extender (100m)

-NEW- The Icron USB 3-2-1 Raven 3104 is a 4 port USB 3.1 SuperSpeed USB extender & is backwards compatible to USB 2.0 and 1.1 and provides the ability to connect all USB 3.1 Gen 1 (5 Gbps) device types to a host across a point-to-point connection up to 100m over CAT 6a/7. The Raven 3104 also includes an Ethernet pass-through for connecting to network enabled devices or to use existing infrastructure without losing LAN connectivity. A true plug-and-play solution, the Raven 3104 USB extender is compatible with all leading operating systems. The Raven 3104 features a locking power connector on both the LEX & REX units. the 4 USB 3.1 ports at the REX unit deliver 1.2A per port, 5A total shared. UK, European and Australian power versions available. Contact your L-com Sales Representative for details.

Features
  • Four available 3.1 Gen 1 ports data rate up to 5 Gbps
  • Supports all major operating systems: Windows®, Mac OS X®, and Linux®
  • 100/1000 Ethernet channel; LAN pass-through, Single cable, CAT 6a/7 up to 100m, Point-to-point connection
  • Supports all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
  • True plug and play; no software drivers required
Application
  • Conferencing Cameras
  • Video Matrix Systems
  • Remote Storage
  • Security and Monitoring

SKU ICR3104
QTY available 210
Quantity Price
1 - 4 $1,090.00
5 - 9 $1,068.20
10 - 24 $1,046.40
25 + Call Us

All Prices are in US Dollars and do not include duties

Price $1,090.00
