USB Type A Cable, Female Bulkhead/Female Header 0.3M
Description

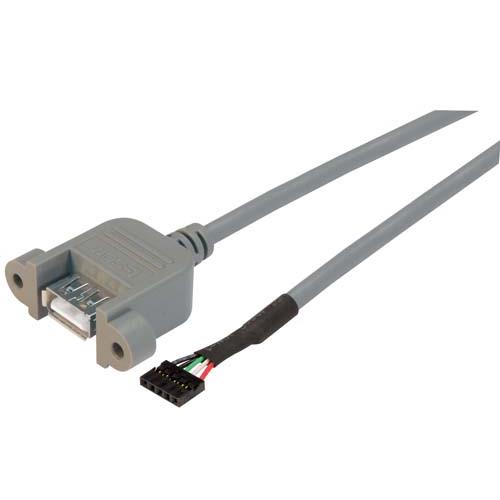

Designed to make "board-to-box" USB connections a cinch, this light, flexible USB cable uses a pre-installed 5 pin 2mm pitch female housing to a molded flange-mount USB type A female. Look no further for your USB panel mount solution! The cable is double shielded for maximum EMI resistance and the power conductors are 26 AWG to make the overall cable more flexible. Each assembly includes two 4-40 x 3/8" Phillips pan head mounting screws. Quantity and custom length pricing available.
Features
Allows USB cables to be passed through panels or enclosures
Type A jack (bulkhead/panel mount) to 5 position female header connector, 2mm pitch
Mounting hardware included
Available in lengths of 0.3, 0.5, 0.75, 1, 2 and 3 meters
Color: Gray
Application
PC Peripheral Interconnects
Test and Measurement
Data Acquisition
Portable Data Storage
Printer Interface
