Description

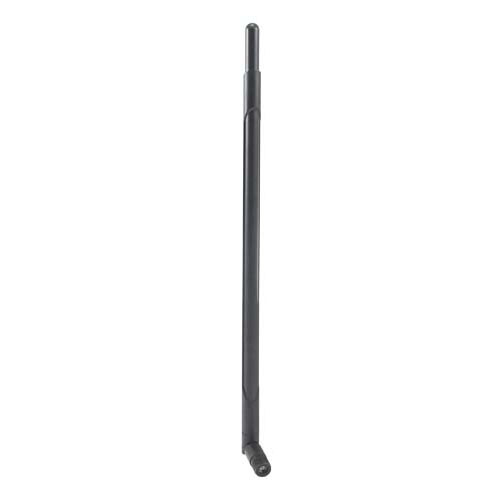

This high performance 2.4 GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 7 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth® and other WLAN applications.
Measuring 14.9" long, this flexible antenna features a tilt-and-swivel reverse-polarity SMA Plug connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with reverse-polarity TNC connectors including Cisco® AP, Linksys® WAP11, WRT54G, WAP54G and others.
Application Note: This antenna is not for use with U.S.Robotics® RP-SMA equipped devices.
For additional information and complete specifications, link on the Data Sheet link in the Downloads tab.
Measuring 14.9" long, this flexible antenna features a tilt-and-swivel reverse-polarity SMA Plug connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with reverse-polarity TNC connectors including Cisco® AP, Linksys® WAP11, WRT54G, WAP54G and others.
Application Note: This antenna is not for use with U.S.Robotics® RP-SMA equipped devices.
For additional information and complete specifications, link on the Data Sheet link in the Downloads tab.
Features
- High Performance - 7 dBi
- Better performance than most stock AP antennas
- Flexible "Rubber Duck" antenna with Tilt and swivel design
- Optional Magnetic Mount Available
- RP-SMA Connector
Application
- Multipoint and Mobile Applications & Bluetooth®
- 2.4 GHz ISM Band
- IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
- Public Wireless Hotspot
- Wireless Video Systems
WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to
www.p65warnings.ca.gov
