Description

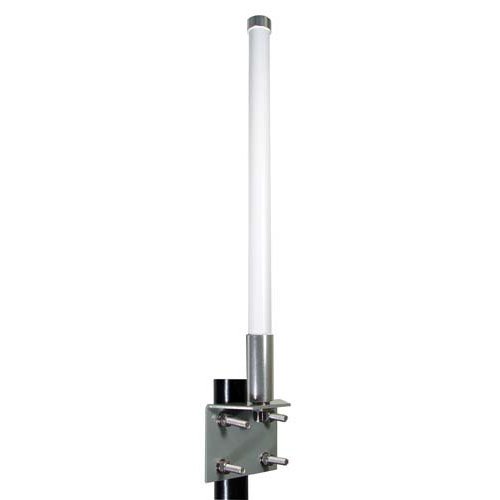

The HyperLink UP Series HG5158-09UP-NF is an economical yet high performance omnidirectional antenna designed for 5.1 GHz through 5.8 GHz band applications. These compact and lightweight antennas are ideally suited for IEEE 802.11a and 802.11n wireless LANs, public wireless hotspot application and other multipoint applications where wide coverage is desired and multiple frequencies are available for use.
The HG5158-09UP-NF antenna features an integral N-Female bulkhead type connector that enables it to be mounted through the wall of an equipment enclosure. The included mast mounting kit consists of a heavy-duty steel bracket and a pair of U-bolts which allows installation on masts up to 2.0" in diameter.
Constructed for all weather operation, the HG5158-09UP-NF features collinear brass elements inside a durable UV-stable white PVC radome. The end cap is sealed while the drain holes at the base help prevent condensation build-up inside the antenna.
For additional information and complete specifications, click on the data sheet link below.
The HG5158-09UP-NF antenna features an integral N-Female bulkhead type connector that enables it to be mounted through the wall of an equipment enclosure. The included mast mounting kit consists of a heavy-duty steel bracket and a pair of U-bolts which allows installation on masts up to 2.0" in diameter.
Constructed for all weather operation, the HG5158-09UP-NF features collinear brass elements inside a durable UV-stable white PVC radome. The end cap is sealed while the drain holes at the base help prevent condensation build-up inside the antenna.
For additional information and complete specifications, click on the data sheet link below.
Features
- Sealed end cap
- Drain holes in base help prevent condensation build-up inside
- Durable UV-stable all weather PVC radome
- Includes mast mounting hardware
- Integral N-Female connector
Application
- 5.3 GHz, 5.4 GHz and 5.8 GHz band applications
- IEEE 802.11a, 802.11n wireless LAN
- WiMAX, WISP and WiFi compatible
- Wireless video systems
- Point to multipoint applications
