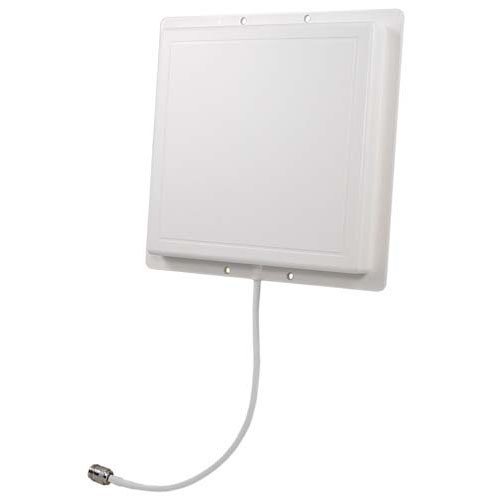

900 MHz 8 dBi Flat Patch Antenna - 4ft SMA Male Connector

SKU HG908P-SM
QTY available 481
Quantity Price
1 - 9 $113.99
10 - 24 $109.43
25 - 99 $104.87
100 + Call Us
Price $113.99

All Prices are in US Dollars and do not include duties



Only 8.5 inches square!

This high gain flat patch antenna provides 8 dBi gain with broad coverage. It is suitable for both indoor and outdoor wireless LAN and wireless video applications in the 900MHz ISM band, GSM, 900MHz cellular, RFID, and LPWAN/IoT/M2M applications.

Rugged and Weatherproof

This antenna's construction features sealed internal elements and an aesthetic UV-stable, UL flame rated white plastic radome. Can be wall or mast mounted using U-bolts.

Custom Connectors

Custom Connectors are available for this antenna. Please contact sales for connector options, prices and availability.

Features
  • Can be installed for either vertical or horizontal polarization
  • Light weight and only 8.5 inches square
  • Low loss solid brass elements and 4 ft. coax lead
  • Durable UV-stable, UL flame rated radome
  • Superior performance

Application
  • Cellular, GSM
  • Wireless LAN systems
  • 900MHz ISM Band
  • LPWAN, LoRA, IoT, M2M applications
  • SCADA, RFID


Documents and Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
Vertical or Horizontal
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
1.5:1
