2W/2dB RF Fixed Attenuator, SMA Male to SMA Female Passivated Stainless Steel Body Up to 6 GHz
Description

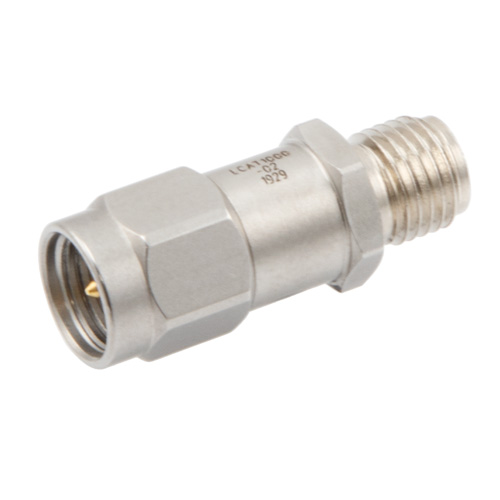

LCAT1000 is a RF fixed attenuator from L-com. With hex nut on the body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other. The part is available in stock with same day shipping.
Features
Attenuation 2±0.5 dB
Max Power 2 Watt (CW)
DC to 6 GHz Frequency Range
SMA connector interface
VSWR < 1.2:1
Application
Instrumentation
Precision measurements
Production systems
Prototyping and characterization
RF test systems
