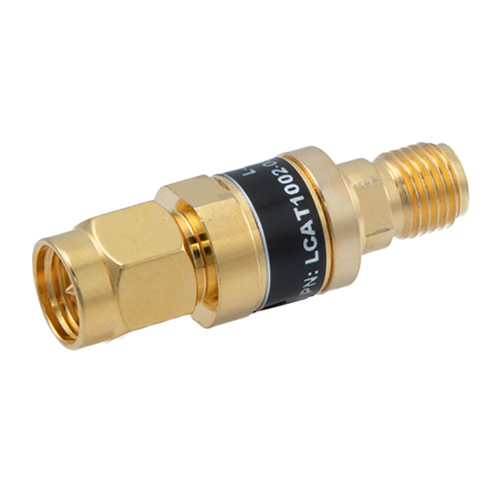

2W/8 dB RF Fixed Attenuator, SMA Male to SMA Female Brass Gold Body Up to 3 GHz

LCAT1002-08 is a 8dB RF fixed attenuator from L-com. With gold plated brass body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other. The part is available in stock with same day shipping.

Features
  • Attenuation accuracy 8±0.5dB
  • Frequency range from DC to 3GHz
  • Input Power 2W max
  • Operating temp range from -55 to 125C
  • VSWR <1.2
Application
  • Instrumentation
  • Production systems
  • Prototyping and characterization
  • Precision measurements
  • RF test systems

SKU LCAT1002-08
QTY available 8
Quantity Price
1 - 24 $12.15
25 - 49 $11.54
50 - 99 $10.94
100 + Call Us

All Prices are in US Dollars and do not include duties

Price $12.15
