BNC Terminator, Male, use with RG58 (50 Ohms) Nylon Cap

SKU BIF5M
QTY available 411
Quantity Price
1 - 24 $9.29
25 - 49 $8.36
50 - 99 $7.43
100 + Call Us
Price $9.29

All Prices are in US Dollars and do not include duties

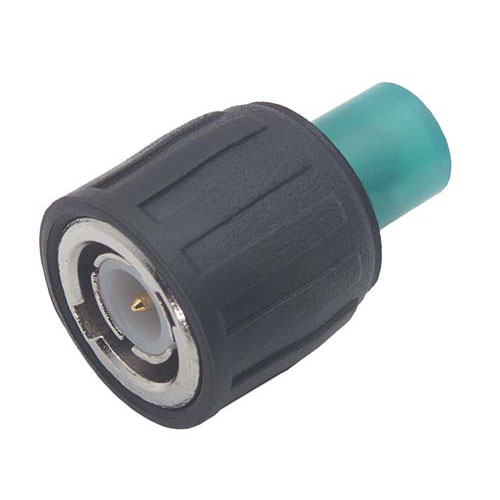

This BNC male terminator features an insulated coupling nut and a green color coded cap indicating a 50 Ohm resistance value for use with 50 Ohm coaxial cable such as RG58 . A ¼ watt @70 degrees metal film type resistor with a +/- 1% tolerance is utilized.

Features
  • Color coded green to assure proper attachment
  • Insulated to avoid grounding problems
  • Line termination of a 50 Ohm transmission line
  • 1/4 watt terminating resistor

Application
  • Cheapernet
  • Ethernet
  • 10Base-3
  • Thinnet


Documents and Resources

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
50 Ohm
Maximum Frequency
1 GHz
Maximum VSWR
1.5:1
Minimum Frequency
DC
Maximum Power
0.25 Watt
Connector Series
BNC
Connector Gender
Male
Package Family
Coax
