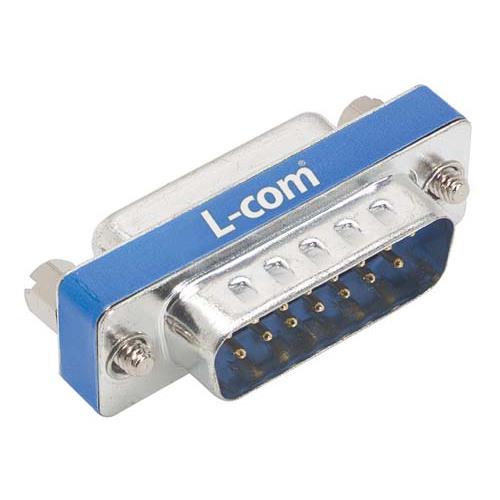

Ferrite Filter (EMI) Adapter, DB15 Male / Female

L-com's male-female filtered adapters are a viable solution for companies that need to rework (retrofit) existing designs in their effort to reduce data destroying EMI/RFI. Easy installation and low cost have saved many engineers from costly re-designs. Similar to standard socket savers, except these adapters add a unique ferrite block that surrounds the contacts for instant EMI/RFI reduction. Four D-sub sizes available - DB9, DB15, DB25 and DB37. Also available in kit form that contains 1 of each; part number DGF100K.

Features
  • Ferrite block reduces EMI/RFI in existing designs
  • Gold plated contacts provide reliable connections with repeated mating cycles
  • Also available in male to female gender combinations in DB9, DB25 & DB37 sizes
  • UL grade 94V-0 connector insulator satisfies flammability requirements
  • Wired straight through for compatibility
Application
  • Data communications
  • EMI/RFI rich environments
  • RS-232
  • RS-485

SKU DGF15MF
QTY available 1247
Quantity Price
1 - 24 $17.99
25 - 49 $16.19
50 - 99 $14.39
100 + Call Us

All Prices are in US Dollars and do not include duties

Price $17.99
