Description

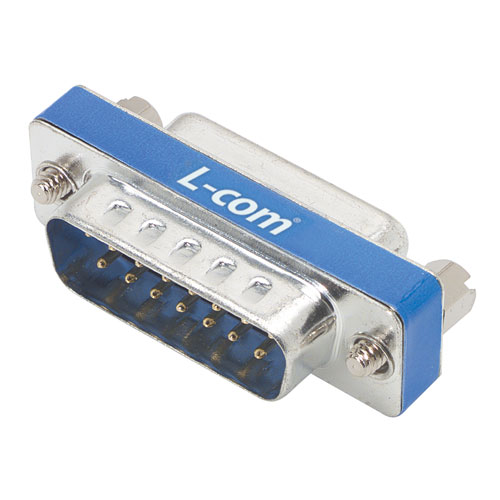

L-com's male-female filtered adapters are a viable solution for companies that need to rework (retrofit) existing designs in their effort to reduce data destroying EMI/RFI. Easy installation and low cost have saved many engineers from costly re-designs. Similar to standard socket savers, except these adapters add a 820pf capacitor that is soldered to each contact for instant EMI/RFI reduction. Four D-sub sizes available - DB9, DB15, DB25 and DB37. Also available in kit form that contains 1 of each; part number DGFC100K.
Features
- Gold plated contacts provide reliable connections with repeated mating cycles
- UL grade 94V-0 connector insulator satisfies flammability requirements
- 820pf capacitors reduce EMI/RFI in existing designs
- Also available in male to female gender combinations in DB9, DB25 & DB37 sizes
- Wired straight through for compatibility
Application
- Data communications
- Premise wiring retrofit
- RS-232
- RS-485
