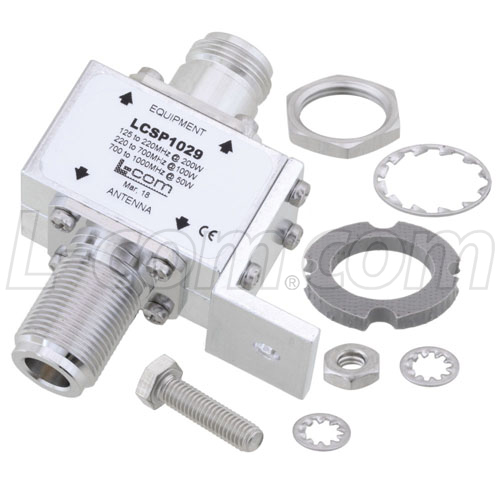

Type N F/F In/Out RF Surge Protector 125MHz - 1GHz DC Block 200W 50kA Blocking Cap and Gas Tube

RF surge protector (also known as lightning arrester) LCSP1029 from L-com utilizing a proprietary surge protection technology protects critical hardware from lightening events while maintaining the RF performance. Also, LCSP1029 is built to provide protection against nuclear EMP. This RF surge protector component is manufactured in a coaxial in-line design with wide operating frequency range and available in stock with same day shipping. Optional weather proofing kit and copper cleaning kit are available for purchase separately.

Features
  • Multi-strike capability
  • Surge current of 20kA
  • DC Block
  • Frequency range from 10MHz to 1GHz
  • VSWR <1.1
Application
  • Ham radios
  • HF, UHF, and VHF radios
  • Remote industrial monitoring

SKU LCSP1029
QTY available 12
Quantity Price
1 - 9 $23.83
10 - 24 $22.88
25 - 99 $21.92
100 + Call Us

All Prices are in US Dollars and do not include duties

Price $23.83

Key Specifications

Key Specifications
