Description

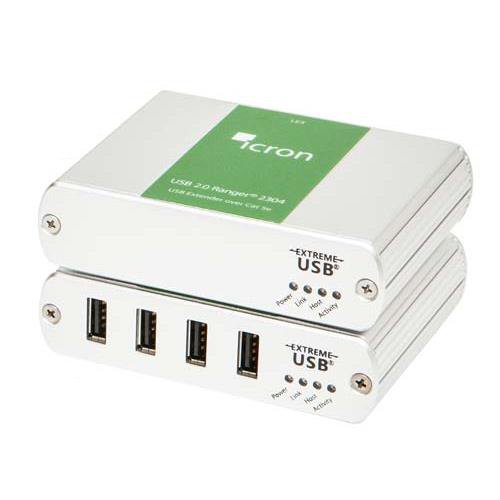

The USB 2.0 Ranger® 2304 is a four port USB 2.0 high speed extension solution, enabling USB 2.0 connections at up to 480Mbps over 100m/330ft of solid conductor Cat 5e (or better) cabling. The Ranger 2304 is the latest USB 2.0 extender system from Icron, offering the same reliable USB 2.0 extension benefits as the Ranger 2204, but with faster throughputs when using read/write devices such as external hard drives as well as supporting a greater number of connections (up to 31 devices and hubs).
The Ranger 2304 provides an integrated four port remote USB 2.0 powered hub delivering 600mA to each port supporting all USB 1.1 and 2.0 device types (up to 480Mbps). The Ranger 2304 extends all USB 2.0 Peripherals such as flash drives, keyboards, mice, webcams and interactive whiteboards across a dedicated Cat5e (or better) connection. UK, European and Australian power versions available. Optional mounting kits also available. Contact your L-com Sales Representative for details.
The Ranger 2304 provides an integrated four port remote USB 2.0 powered hub delivering 600mA to each port supporting all USB 1.1 and 2.0 device types (up to 480Mbps). The Ranger 2304 extends all USB 2.0 Peripherals such as flash drives, keyboards, mice, webcams and interactive whiteboards across a dedicated Cat5e (or better) connection. UK, European and Australian power versions available. Optional mounting kits also available. Contact your L-com Sales Representative for details.
Features
- Extends USB 2.0, and 1.1 (both low-speed and full-speed) devices up to 480Mbps (USB 3.0 can also be extended but only at USB 2.0 Speeds)
- Integrated hub provides four remote ports for USB devices, (additional USB hubs can be used to add more ports)
- Operates with all USB Controllers
- Supports all major operating systems: Windows®, Mac OS X®, and Linux®
- True plug and play, ready to operate right out of the box. No new driver installation required
Application
- Interactive Whiteboards
- Remote admin/control (Keyboard & Mouse)
- Video Matrix Systems
- Medical Device Connectivity
- Remote Storage
