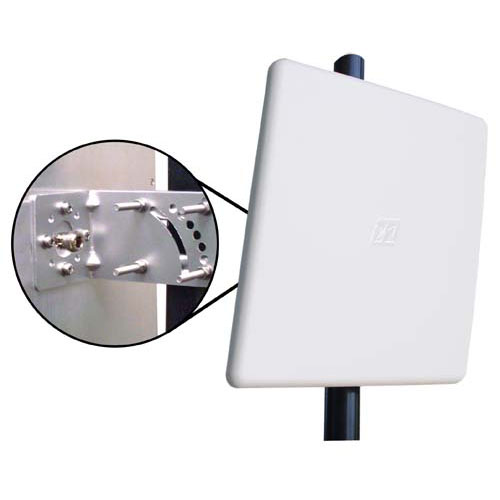

900 MHz 9 dBi Heavy Duty Flat Panel Antenna

SKU HG8909P
QTY available 468
Quantity Price
1 - 9 $121.99
10 - 24 $117.11
25 - 99 $112.23
100 + Call Us
Price $121.99

All Prices are in US Dollars and do not include duties



The HyperLink HG8909P high performance antenna provides 9 dBi of gain with broad coverage. Suitable for both indoor and outdoor installations, the HG8909P is ideal for 900 MHz ISM band applications, 900 MHz cellular applications, SCADA, RFID, and LPWAN/IoT/M2M applications.

The HG8909P features a heavy duty UV-stable plastic radome for all weather operation and a integral N-Female connector. The included tilt and swivel mast mount allows installation at various degrees of incline for easy alignment.

Click on the Downloads tab for additional information and complete specifications.


Features
  • Can be installed for vertical or horizontal polarization
  • Integral N-Female connector
  • Direct ground protection
  • Heavy duty all weather plastic radome
  • Includes tilt and swivel mast mount

Application
  • LPWAN, LoRA, IoT, M2M applications
  • Wireless video links
  • 900 MHz ISM and cellular band
  • NLOS (near line of sight) applications
  • SCADA and RFID applications


Documents and Resources

Key Specifications

Key Specifications

Antenna Type
Panel
Polarization
Vertical or Horizontal
Connector 1 Polarity
Standard
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
1.8:1
