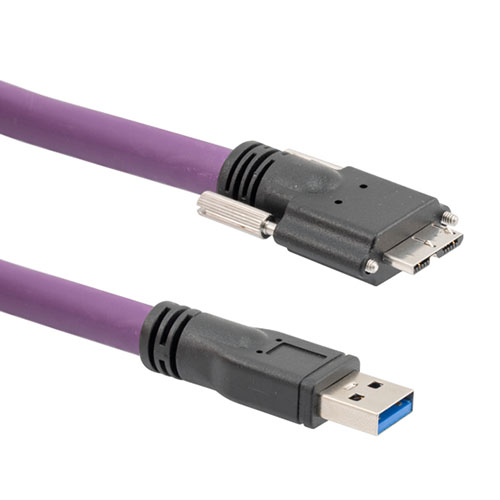

High Flex USB 3.0 Cable Assembly, A Male to Micro B Male w/ Machine Vision Thumbscrews, 28/26/22AWG, High Flex Rated TPE, Violet, 1.0M
Description
L-com's CAU3VISHF series of USB 3.0 cables deliver fast performance coupled with a rugged design. Special continuous motion TPE cable allows the assembly to be flexed up to one million times without degradation of performance. These cables are made for applications where ordinary USB cables would fail. Additionally, these assemblies use UL recognized jackets and have 22AWG power conductors for maximum power delivery. These cables are excellent for automation and factory use. Standard lengths of 1, 2 and 3 meters are available off the shelf. Order these high flex cables online today.
Features
High flex and continuous motion rated for a minimum of 1 million flex cycles
Assembly built to USB 3.0 standards and speeds
Micro B connector has built in Machine Vision thumbscrews that can be pushed back if not required
UL Style 21445, VW-1 violet TPE jacket
22AWG power conductors for maximum current
Application
Industrial or Factory Automation
Process engineering
Machine Vision applications
Data acquisition or PLC communications
Test and measurement
