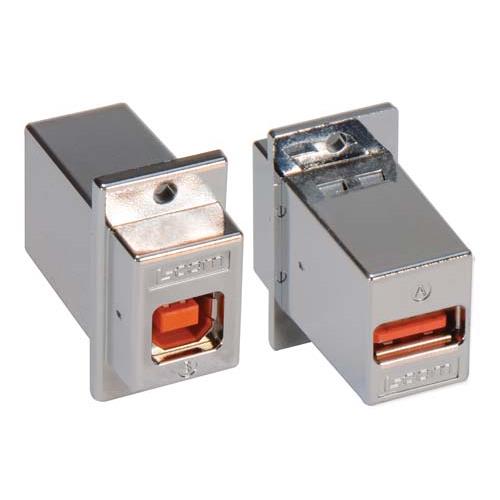

USB Panel Mount Adapter B Female/A Female High Retention Connectors

L-com's ECF style High Retention USB adapters provide an easy to use mountable USB solution featuring a high retention connector that provides 50% (minimum) greater connector retention than standard USB connectors. This feature is ideal for applications where mated cables can become detached by jostling, vibration, etc. These adapters are available in B-A, A-A, and A-B connector configurations, and all three feature a shielded housing. L-com's 4-40 screws (PN# ECF440) are used to mount these adapters and are sold separately.

Features
  • Allows USB cables to be passed through panels or enclosures
  • Connector options are USB A-A, B-A & A-B
  • High Retention connectors provide a mating force of 40N max and an unmating force of 15N min - 50% (minimum) higher retention than standard USB connectors
  • Screw mount for secure connections every time
  • 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
Application
  • Data Acquisition
  • PC Peripheral Interconnects
  • Test and Measurement

SKU ECF504-BAS-HR
QTY available 505
Quantity Price
1 - 24 $16.99
25 - 49 $16.14
50 - 99 $15.29
100 + Call Us

All Prices are in US Dollars and do not include duties

Price $16.99

Key Specifications

Key Specifications

View All

Product Compliance

Product Compliance
